[1 String] RAPID SHUTOWN 1,000VDC
[1 String] RAPID SHUTOWN 1,000VDC
Couldn't load pickup availability
1000VDC RAPID SHUTDOWN
1 String Configuration
Entry Level Solution
š Perfect For
Small residential solar installations and entry-level systems. Ideal for single-string configurations requiring 1000VDC rating.
š” Smart Choice
Cost-effective solution without compromising on safety or quality. All professional features in a compact design.
š§ Product Features
ā Certification & Safety
- Rated 1000VDC
- Certified to cETLus to UL1741
- NEMA Type 4X Enclosure
ā Technical Features

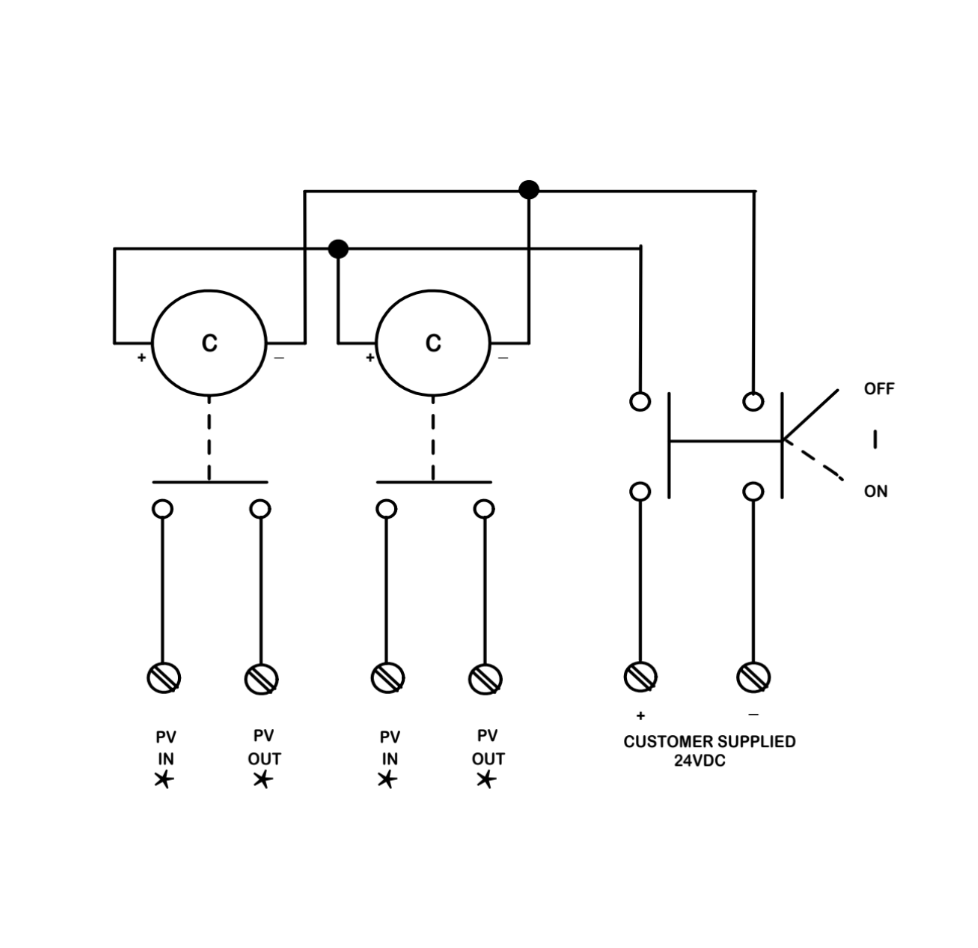

- Integrated Load Break Contactors
- Lock out tag out control circuit
- Ground Strip Included
š Configuration
- 1 POS / 1 NEG Inputs/Outputs
- 20 Amps load break
- 50 Amps continuous
š Technical Specifications
Maximum Voltage: 1,000 VDC
Max Rated Current: 20 Amps
Continuous Current: 50 Amps
Input Circuits: 1 POS / 1 NEG
Output Circuits: 1 POS / 1 NEG
Wire Size: 22 - 8 AWG
Enclosure Size: 10x8x4
Enclosure NEMA Type: 4X
Controls Circuit: 24 VDC
š Why Choose DC Sun Volt?
š§ Easy to replace components
ā” More durable than solid state systems
š” Multiple NEMA enclosure types available
š Professional technical support
Compliance: NEC 690.12 | Certification: Certified to cETLus to UL1741Ā | Part No.: PV4X-U2S-RS
