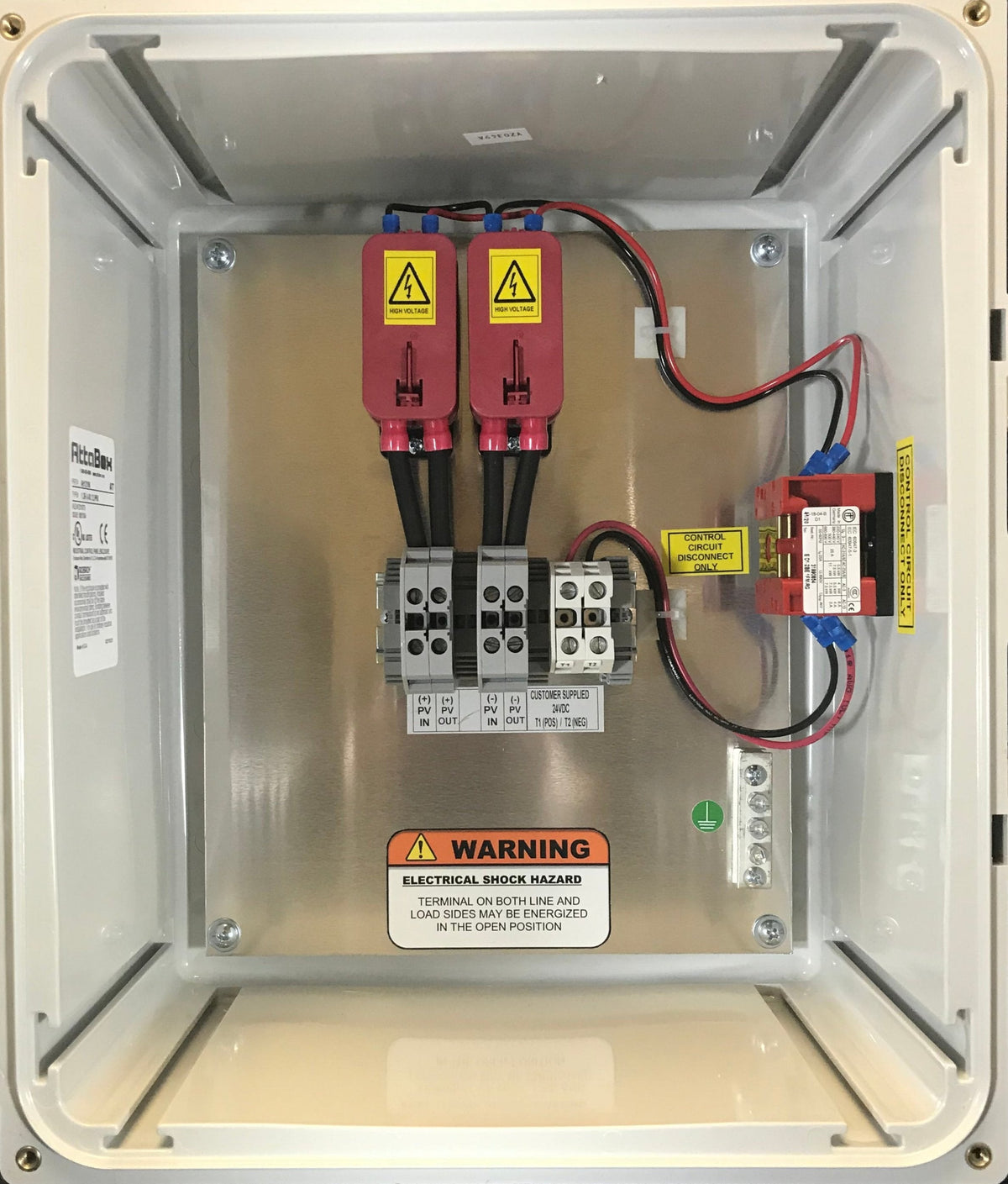

PV4X-U2S-RS 1 String Rapid Shutdown

DC Sun Volt Rapid Shutdown Solutions, ads Part of the String level solution, applicable for residential and commercial solar systems.

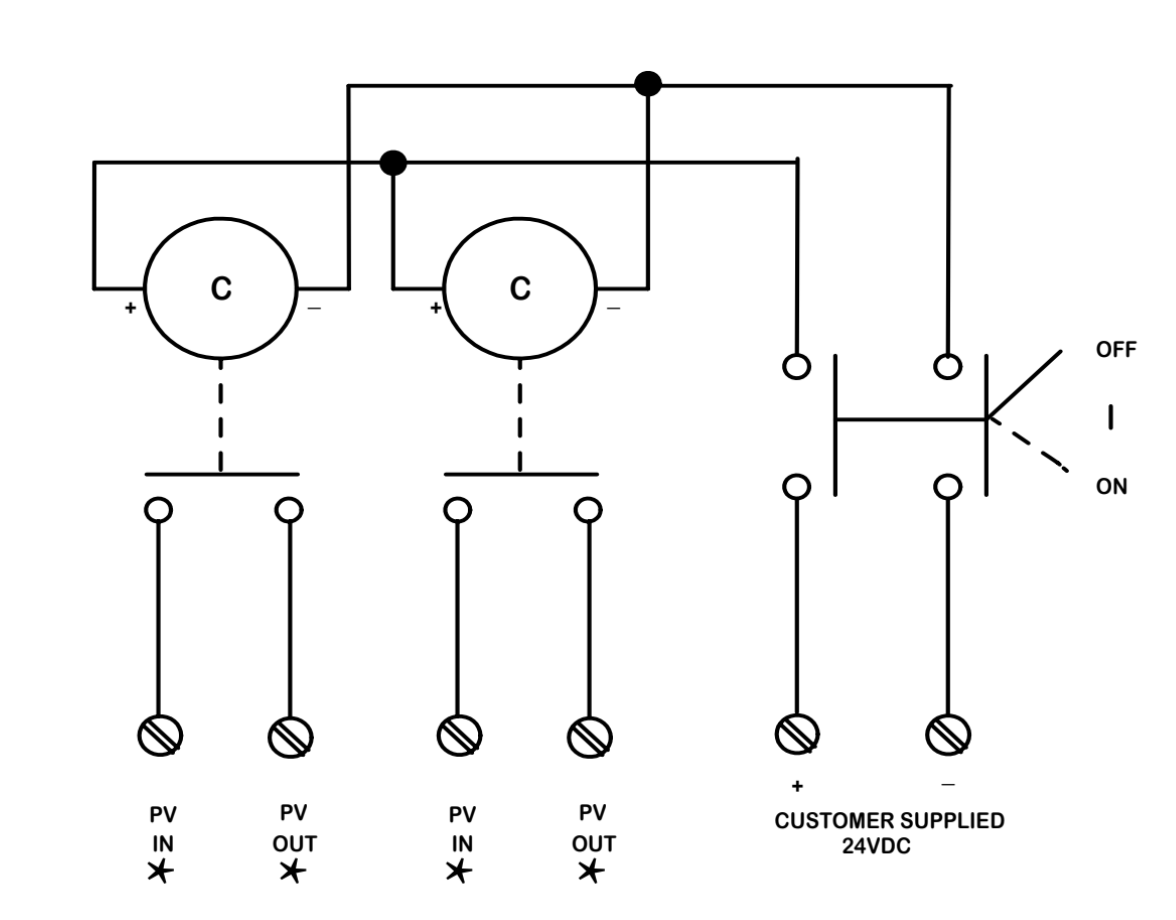

Integrated Load Break Normally Open Contactor for Rapid Shutdown (Per NEC 690-12), 1000VDC / 20 Amps per String.
- Configurations for Negative, and Positive Inputs
- Ground Strip Included.
- NEMA Type 4X Enclosure
- cETLus Certified for UL1741
- Resistive Load
- Make and Break 20 Amps @ 1,000VDC

Instalation Information (PDF)

• Product Description: Pass-Through Unit
• Product Part Number: PV4X-U2S-RS
• Maximum Voltage: 1,000 VDC
• Number of Input Circuits: 1 POS / 1 NEG
• Number of Output Circuits: 1 POS / 1 NEG
• Input Terminal Wire Size: 22 – 8 AWG
• Output terminal Wire Size: 22 – 8 AWG
• Max Rated Current: 20 Amps
• Enclosure Size: 10x8x4
• Enclosure NEMA Type Rating: 4X Controls
• Controls Circuit Voltage: 24 VDC / 0.17 amps
